Handheld Laser Cleaning Equipment | Portable Handheld Laser Cleaning Equipment-DITT (Hangzhou) Technology Co., Ltd.

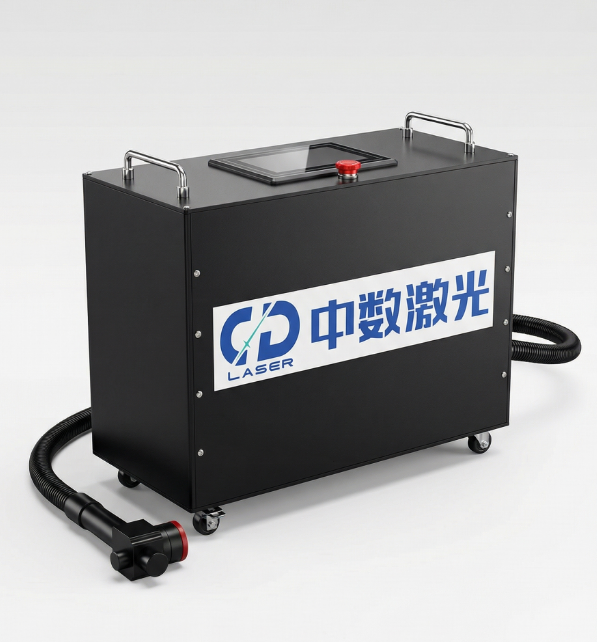

Handheld Laser Cleaning Equipment

Portable, flexible cleaning for areas fixed systems cannot reach.

This portable handheld laser cleaning device features a compact design and is easy to transport, delivering superior cleaning performance on surfaces with thin paint or rust layers. The device offers high operational flexibility and a wide coverage range, enabling it to access work areas inaccessible to stationary equipment, thereby supplementing the cleaning of residual areas remaining after paint removal with stationary equipment.

Get Quote Now

Solution

For scenarios involving fragmented maintenance tasks and hard-to-reach areas that cannot be covered by stationary cleaning equipment, we provide a handheld laser cleaning supplementary solution. This solution is suitable for applications such as on-site maintenance in vehicle depots, track-side maintenance, and pre-treatment before repainting small components. The equipment is portable and easy to transport, requires no complex installation, and can rapidly respond to temporary cleaning needs. As a complementary tool to automated cleaning lines, it ensures comprehensive cleaning coverage across all operational scenarios.

Model

ZSJG-50 Portable Handheld Laser (50W)

With 50W power output and an ultra-lightweight design, the entire unit weighs only 7.5 kg, making it easy to carry and transport. It is ideal for light-duty rust and oil removal operations.

ZSJG-100 Portable Handheld Laser (100W)

With 100W power, it delivers enhanced cleaning performance; the overall unit weight is 8.8 kg, making it ideal for daily small-scale rust and paint removal tasks.

200W Portable Handheld Laser

With a power rating of 200 W, this equipment delivers higher cleaning efficiency, is suitable for workpieces with thick paint or rust layers, and meets the daily repair and spot-cleaning requirements of vehicle depots.

MET-MINI-J-300 Series (300W)

Comprising three sub-models—MET-MINI-J-300-1-A, MET-MINI-J-300-5-A, and MET-MINI-J-300-10-A—this high-power configuration is designed for on-site maintenance and pre-processing of heavy-duty workpieces.

Overall Technical Parameters

Technical Specifications	ZSJG-50	ZSJG-100
work pattern	Pulsed & Continuous	Pulsed & Continuous
Center wavelength	1064±3nm	1064±6nm
Output average power	51±1W	105±5W
repeat frequency rate	45~170KHz	20~200KHz
light impulse length	90~110ns	150~190ns
Maximum pulse energy	1.1mJ	1.6mJ
Beam quality (M²)	＜1.6	＜1.6
Length of fiber optic armored cable	3m	3m
working voltage	AC 220V	AC 220V
cooling-down method	air cooling	air cooling
net weight	7.5Kg	8.8Kg

Working Principle

(1) Introduction The equipment transmits high‑energy laser to the handheld cleaning head via optical fiber. Operators hold the cleaning head and aim it at the workpiece surface. The laser beam acts on the dirt layer to heat it for vaporization, expansion and stripping. Built‑in parameter adjustment function allows the equipment to adjust laser energy according to different materials and dirt thicknesses. A supporting portable dust‑removal device collects smoke and dust generated during operation to realize flexible mobile non‑contact cleaning work. (2) Process Flow Chart Equipment startup and commissioning → Aiming at the operation area → Cleaning with uniform‑speed movement → Surface purging and cleaning → Effect inspection → Operation completion

Why Choose Us

Lightweight and easy to operate

The handheld laser head weighs only 0.8 kg, offers a comfortable grip, and is suitable for complex operational scenarios such as high-altitude work, confined spaces, and under-vehicle inspections—increasing under-vehicle maintenance efficiency by 300%.

Excellent cleaning performance

The rust removal efficiency reaches 1.5 m²/h, which is three times that of traditional manual grinding, and delivers exceptional results in removing thin paint layers and surface rust.

Long battery life and excellent compatibility

The integrated battery pack supports continuous operation for over 4 hours, enabling a single charge to cover up to 30 linear meters of rail de-rusting, thereby meeting on-site operational requirements.

High protection rating and robust operational performance

It achieves an IP54 protection rating, is resistant to dust and vibration, and can extend the equipment's service life by up to 5 years under harsh operating conditions.

About Us

Founded in 2018, DITT applies AI visual intelligence to rail transit. Built on our own visual perception algorithms, intelligent hardware and O&M systems, we deliver a full inspection portfolio spanning onboard and wayside applications, now serving 20+ rail transit systems across China.

Together with our subsidiaries — Zhonggang Maintenance, Zhongshu Laser and Yunshang Urban Rail — we are moving rail transit O&M toward predictive maintenance and full-lifecycle management.

View Details

Company Establishment

Invention Patents

Metro Clients Served

0%+

R&D Proportion of Revenue

Latest News

The EMU Intelligent Inspection System Application Project Jointly Developed by DITT and Changzhou Metro Passes Expert Review

On August 30, 2025, Changzhou Metro Group held the "Changzhou Metro Line 1 EMU Intelligent Inspection System Expert Review Meeting" at the Baizhang Depot.

1970-01-01 View Details

ZS Laser’s Vehicle Parts Laser Cleaning Equipment Passes Review by Shanghai Shentong Metro Group

On August 15, 2025, the Technology Center of Shanghai Shentong Metro Group Co., Ltd. held an expert review meeting on the "Automatic Laser Cleaning Equipment for Vehicle Parts" at the Shanghai Metro Jiangyang North Road Base.

1970-01-01 View Details

Frequently Asked Questions

Is operating handheld devices safe?

The equipment is equipped with multiple safety protections, including contact sensing, emergency stop switches, and safety locks, and is accompanied by dedicated protective goggles, complying with industrial laser safety standards.

Is it permissible to work at heights or beneath vehicles?

Yes. The device is lightweight and highly flexible; its cleaning head is connected to the host via a fiber optic cable, offering a wide range of operational applications and compatibility with various scenarios—including high-altitude environments, under-vehicle areas, and confined spaces.

Can the equipment operate continuously for extended periods?

The standard model supports extended continuous operation; the battery-powered version can support over 4 hours of continuous operation depending on its battery capacity, meeting diverse operational duration requirements.

Do adjustments need to be made when cleaning workpieces made of different materials?

The equipment features multiple built-in material and process parameters, enabling rapid parameter switching based on the material of the workpiece and the type of contaminants, thereby ensuring optimal cleaning performance while protecting the substrate material.

Is the equipment easy to transport?

The equipment features an integrated chassis design, and certain models are equipped with pull handles and casters, allowing a single person to push and relocate the unit, as well as load it onto a vehicle for transport to various work sites.

Does the equipment require any consumables?

The equipment requires no core consumables; only the protective lenses and dust filtration cartridges need periodic replacement, resulting in low operating costs.
